Click on Floorplans below to view full size drawing
F330 29 passenger w/rear luggage
F330 33 passenger/slide luggage

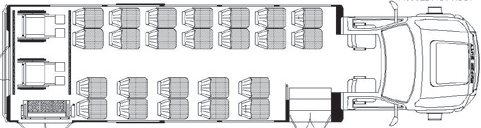

F330 26 passenger+2WC
CClick on Pictures below to view full size

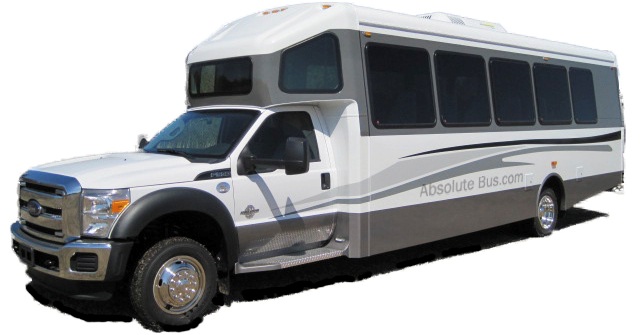

Built on the solid Ford strong F450 chassis, Ameritrans F550, F330 Bus transport up to 33 passengers in high-style and unsurpassed comfort and offers many unique features like the front cab touring windows for enhanced passenger views and custom built-to-order options that only Ameritrans buses bring to the mid-size transport market. For church buses, assisted living transport, public transit and more, the Ameritrans F-Series is designed to maximize the passenger experience with build-to-order seating configurations. Constructed for safety and longevity, Ameritrans buses are built with an all steel wall, ceiling and floor frame. The aluminum body sports a fiberglass front and rear cap, one piece fiberglass roof, and full body paint. They also have the a 3/4 inch plywood floor, the thickest in the industry.
The Ford F550 chassis comes standard with a V10 Triton Gas engine or optional very quite 395 horsepower 6.7 liter powerstroke diesel coupled with a 6 speed transmission provides a reliable stress free smooth ride.
Optional upgrades
are available including options for the A/C system, video and audio systems,
one piece sedan style door,
luggage partition and overhead racks, back-up cameras, seat and fabric upgrades, ADA equipment
and most importantly, a large array of floor plans to suit your demanding
transportation needs.
The Ameritrans F550, F330 Bus comes in many various layouts,
some as shown in the diagrams to the right.
.

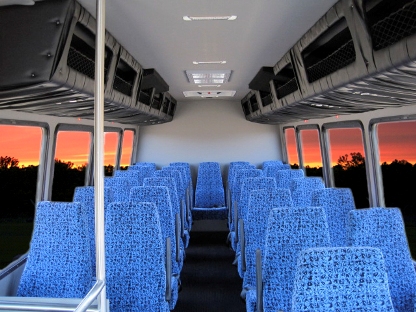

Ameritrans F550, F330 Bus Interior
Width: 102 inches | Fuel Capacity: 40 gallons | Velvac foldaway mirrors |
Length: 34 feet | Full welded steel cage | 2- point seatbelts |
Height: 10 foot 6 inches | .063 aluminum sidewalls | All LED lighting |
Chassis: Ford F550 | 3/4 inch plywood subfloor | Large coach style windows |
Wheelbase 252 inches | Fiberglass one-piece roof | Full body paint |
GVWR: 19,500 pounds | Fully insulated with foam board | Powder coated steel rear bumper |
Engine 6.8L gas/6.7diesel | Full cab: driver & copilot | Full undercoat package |
